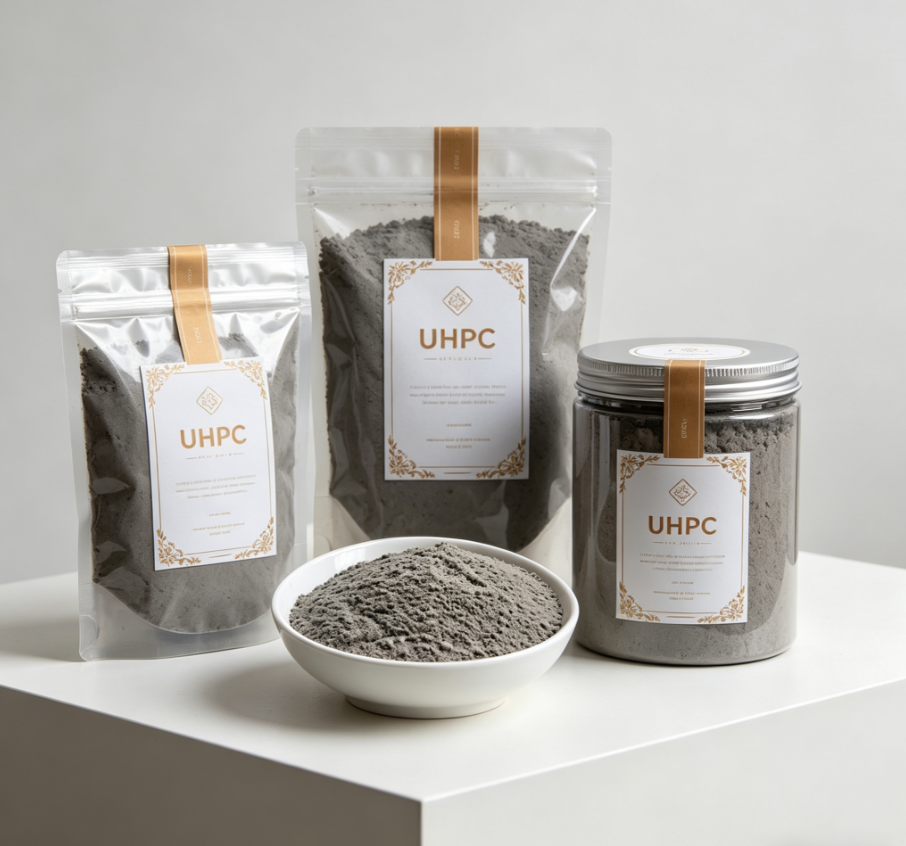

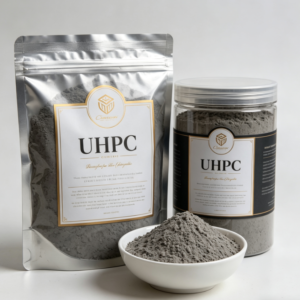

Product Description
Ultra High Performance Concrete (UHPC) is a new generation high-end engineering composite material. It is formulated with ultra-low water-binder ratio, high-quality aggregates and high-strength fibers
Product Parameters
Compressive Strength ≥ 120Mpa
Flexural Strength ≥ 12Mpa
Elastic Modulus ≥ 40GPa
Chloride Ion Diffusion Coefficient ≤ 0.4 × 10⁻¹²m²/s

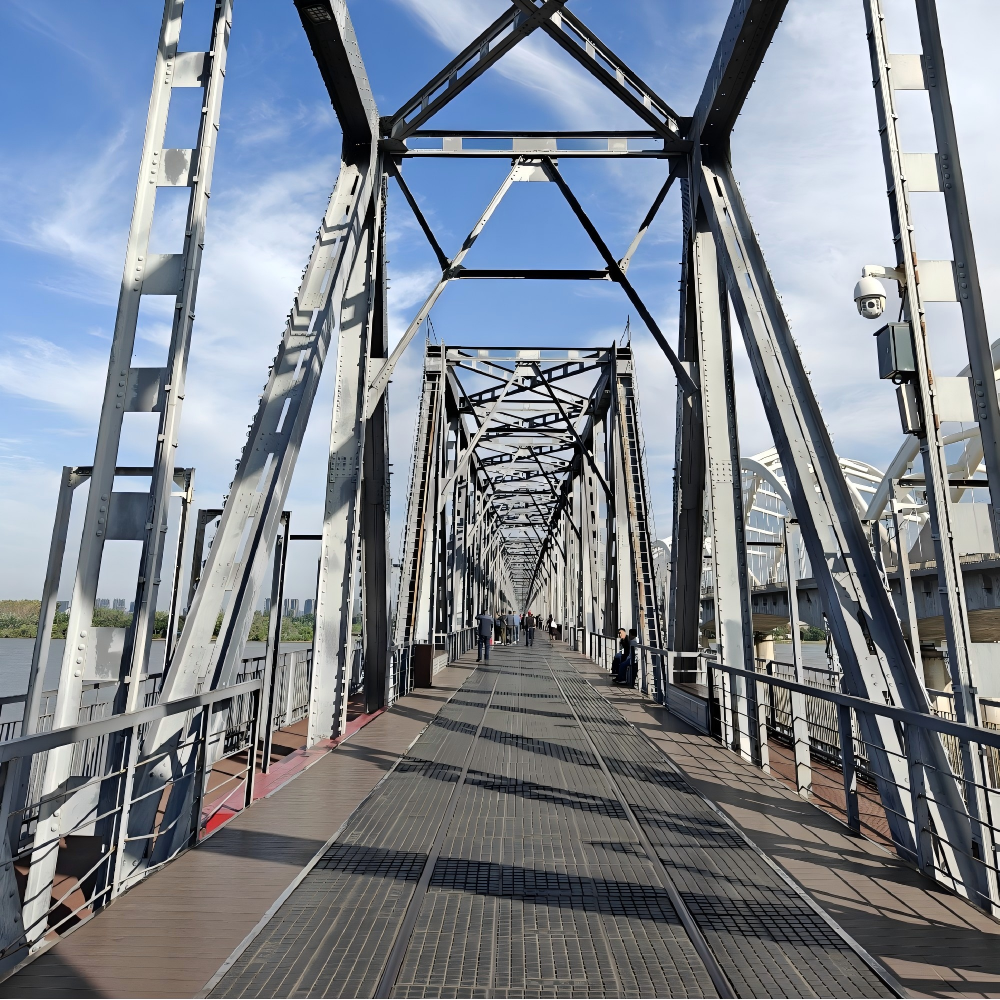

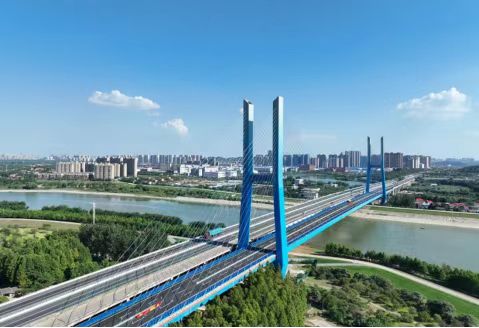

Application
Bridge deck slab
Bridge deck overlay
Bridge joints
Expansion joints
Main girders & bridge beams
Bridge pier reinforcement
Bridge abutment
Bridge anti-collision components
Bridge walkway
Precast bridge segments
Cast-in-place wet joints
Pedestrian bridge full components
What Makes UHPC So Strong?
Ultra-High Performance Concrete (UHPC) achieves its exceptional strength and durability through multi-scale material optimization. It eliminates coarse aggregates and uses a densified particle packing system (including cement, silica fume, and fine quartz powder) to create an extremely dense, low-porosity matrix. This is combined with a very low water-to-binder ratio (enabled by high-range water reducers) and the incorporation of steel fibers. The fibers bridge micro-cracks, providing ductility and toughness. The result is a composite material with superior mechanical properties, extremely low permeability, and outstanding long-term durability.
